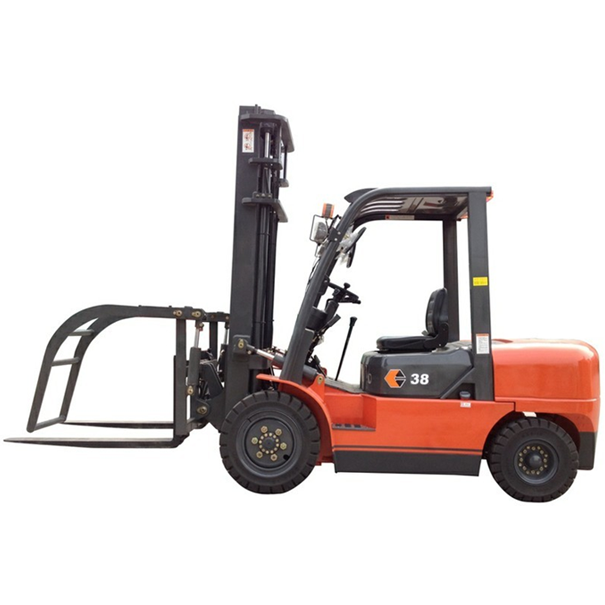

Hinged Log Holder
Especificaciones
| Capacity@ Rolldiameter |
Installation Level |
Available Forklift |
Roll Diameter (mm) |
Long Arm (mm) |
Short Arm (mm) |
Arm Thickness (mm) |
Weight (kg) |
| 1300@1300 | Ⅱ | 1-2.5t | 410-1300 | 782 | 575 | 50 | 342 |
| 1500@1150 | Ⅱ | 1-2.5t | 330-1150 | 740 | 510 | 50 | 325 |
| 2000@1400 | Ⅱ | 2-2.5t | 500-1400 | 935 | 635 | 50 | 705 |
| 2000@1340 | Ⅱ | 2-2.5t | 630-1340 | 831 | 589 | 50 | 738 |
| 2000@1600 | Ⅱ | 2-2.5t | 600-1600 | 1012 | 817 | 50 | 875 |
| 2000@1830 | Ⅱ | 2-2.5t | 680-1830 | 1147 | 980 | 50 | 920 |
| 2000@1400 | Ⅲ | 3-4.5t | 500-1400 | 935 | 635 | 50 | 710 |
| 2000@1340 | Ⅲ | 3-4.5t | 630-1340 | 831 | 589 | 50 | 738 |
| 2000@1600 | Ⅲ | 3-4.5t | 600-1600 | 1012 | 817 | 50 | 875 |
| 2000@1830 | Ⅲ | 3-4.5t | 680-1830 | 1147 | 980 | 50 | 920 |
| 3500@1520 | Ⅳ | 5-7t | 610-1520 | 1051 | 720 | 65 | 1240 |
