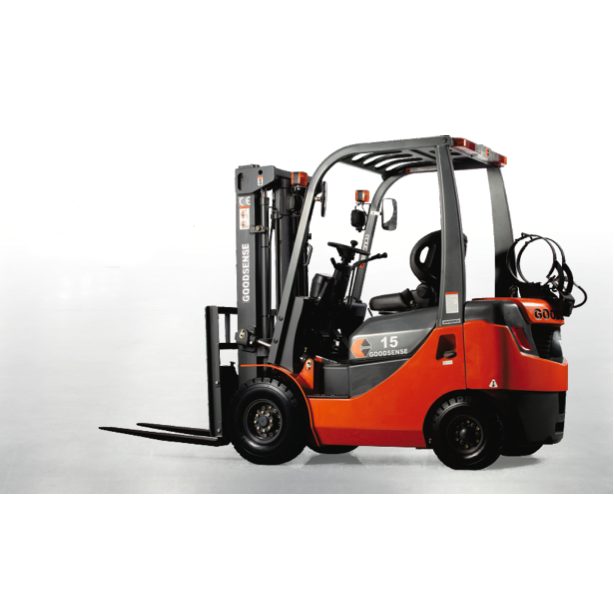

Gasoline-LPG Forklift de 1 y 1.8 Ton
Especificaciones
| Type of model | FY10 | FY15 | FY18 | |||
| Power Source | Gasoline/LPG | Gasoline/LPG | Gasoline/LPG | |||
| Rated load capacity | kg | 1000 | 1500 | 1800 | ||
| Load centre | mm | 500 | 500 | 500 | ||
| Lift height | mm | 3000 | 3000 | 3000 | ||
| Fork size (L×W×T) | mm | 920×120×35 | 920×120×35 | 920×120×35 | ||
| Fork carriage tilt(F/R) | ° | 6°/12° | 6°/12° | 6°/12° | ||
| Overal Length(Length to fork face) | mm | 2205 | 2285 | 2285 | ||
| Overall Width | mm | 1086 | 1086 | 1086 | ||
| Mast Extended Height | mm | 3940 | 3940 | 3940 | ||
| Mast Lowered Height | mm | 1995 | 1995 | 1995 | ||
| Overhead Guard Height | mm | 2040 | 2040 | 2040 | ||
| Gradeability(Laden) | % | 20 | 20 | 20 | ||
| Front Tire | 6.50-10-10PR | 6.50-10-10PR | 6.50-10-10PR | |||
| Rear Tire | 5.00-8-10PR | 5.00-8-10PR | 5.00-8-10PR | |||
Motor
| Brand | Model | Rated output (kw/r.p.m) |
Rated torque (Nm/r.p.m) |
No. of cylinder | BoreXStroke (mm) | Displacement (cc) |
| NISSAN | K21 | 31.2/2250 | 143.7/1600 | 4 | 89X83 | 2065 |
| lpg 1/1.5/1.8 | 1 ton/1.5 ton/1.8 ton |
|---|
