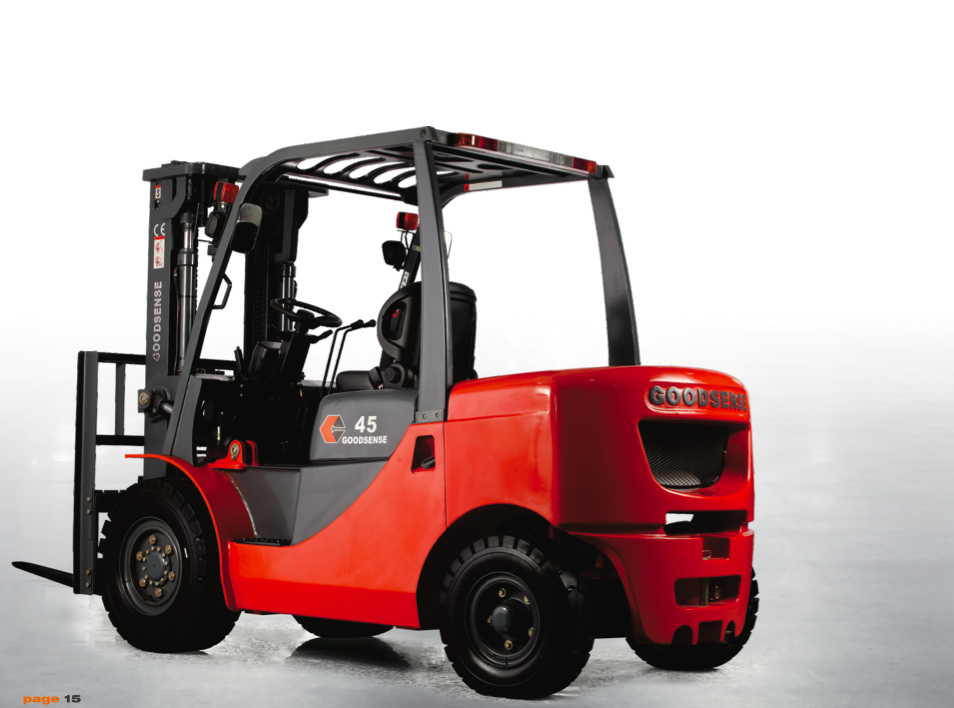

Diesel Forklift de 4 a 5 Ton

Especificaciones

Type of model FD40 FD45 FD50(small)
Power source Diesel Diesel Diesel
Rated load capacity kg 4000 4500 5000
Load centre mm 500 500 500
Lift height mm 3000 3000 3000
Fork size (L×W×T) mm 1070×150×50 1070×150×50 1070×150×50
Fork carriage tilt(F/R) ° 6°/12° 6°/12° 6°/12°
Overall Length(Length to face of fork) mm 3220 3220 3220
Overall Width mm 1480 1480 1480
Mast Lowered Height mm 2330 2330 2330
Mast Extended Height mm 4250 4250 4250
Overhead Guard Height mm 2320 2320 2320
Gradeability(Laden) % 20 20 20
Front Tire 300-15-18PR 300-15-18PR 300-15-18PR
Rear Tire 7.00-12-12PR 7.00-12-12PR 7.00-12-12PR
