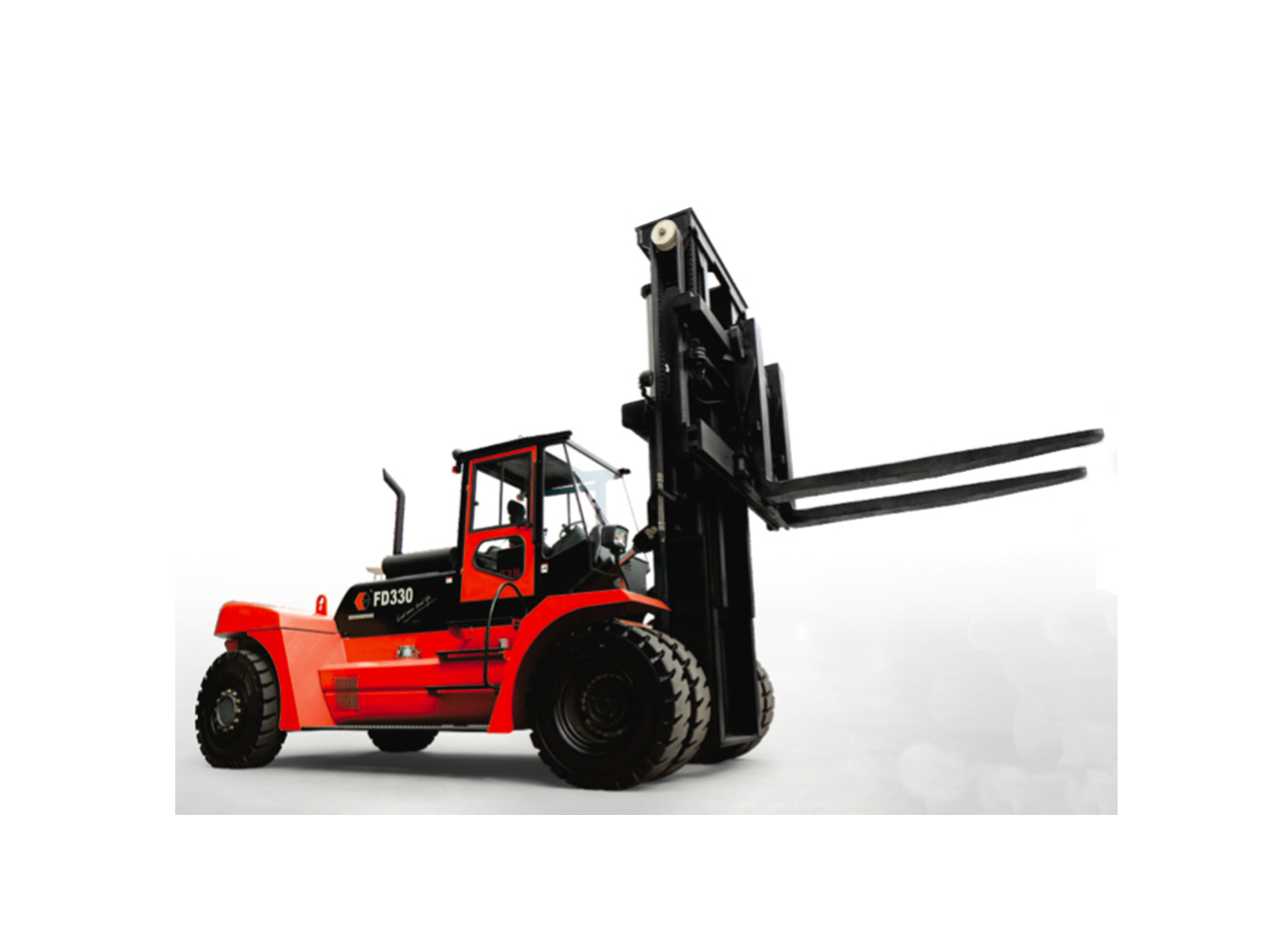

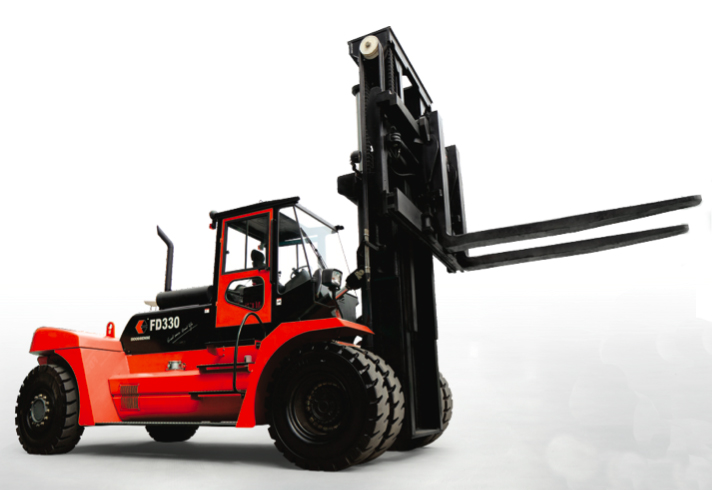

Diesel Forklift de 25 a 33 Ton
Especificaciones
| Type of model | FD250 | FD280 | FD300 | FD330 | |||
| Power source | Diesel | Diesel | Diesel | Diesel | |||
| Rated load capacity | kg | 25000 | 28000 | 30000 | 33000 | ||
| Load centre | mm | 1200 | 1200 | 1200 | 1200 | ||
| Lift height | mm | 4000 | 4000 | 4000 | 4000 | ||
| Fork size (Length) | mm | 2440 | 2440 | 2440 | 2440 | ||
| Fork carriage tilt(F/R) | ° | 5°/10° | 5°/10° | 5°/10° | 5°/10° | ||
| Overall Length(Length to fork face) | mm | 6885 | 6885 | 6885 | 6885 | ||
| Overall Width | mm | 3050 | 3050 | 3050 | 3050 | ||
| Mast Lowered Height | mm | 4000 | 4000 | 4000 | 4000 | ||
| Mast Extended Height | mm | 6000 | 6000 | 6000 | 6000 | ||
| Overhead Guard Height | mm | 3500 | 3500 | 3500 | 3500 | ||
| Gradeability(Laden) | % | 25 | 25 | 25 | 25 | ||
| Front Tire | 14.00-24(SE) | 14.00-24(SE) | 14.00-24(SE) | 14.00-24(SE) | |||
| Rear Tire | 14.00-24(SE) | 14.00-24(SE) | 14.00-24(SE) | 14.00-24(SE) | |||
