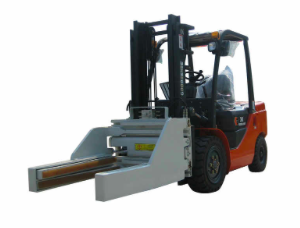

Block Clamp
Especificaciones
| Capacity @ Load Center |
Installation Grade |
Adaptation Forklift |
arm range |
Arm high |
Arm length |
Arm thickness |
Overall height |
Fork frame width of the minimum |
Frame width B |
Weight |
| (Kg@mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (Kg) | ||
| 600@500 | Ⅱ | 1-2.5t | 100-1100 | 118 | 1330 | 187 | 670 | 830 | 1040 | 580 |
| 2700@500 | Ⅱ | 1-2.5t | 326-1614 | 242 | 1146 | 208 | 755 | 970 | 1010 | 766 |
| 2700@500 | Ⅲ | 3-4.5t | 326-1614 | 242 | 1520 | 195 | 752 | 1260 | 1300 | 930 |
| 2700@500 | Ⅲ | 3-3.5t | 326-1614 | 242 | 1146 | 208 | 752 | 970 | 1010 | 766 |
| 2700@500 | Ⅲ | 3-3.5t | 326-1614 | 131 | 1146 | 193 | 754 | 970 | 1010 | 605 |
| 2700@500 | Ⅲ | 3-4.5t | 650-2000 | 208 | 1365 | 192 | 800 | 970 | 1250 | 1100 |
