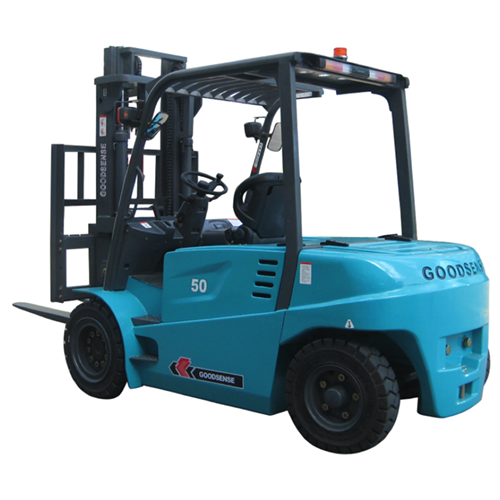

4-wheel Electric Forklift de 4 a 6 ton
Especificaciones
| Power source | Battery | Battery | Battery | Battery | |||
| Rated load capacity | kg | 4000 | 4500 | 5000 | 6000 | ||
| Load centre | mm | 500 | 500 | 500 | 500 | ||
| Lift height | mm | 3000 | 3000 | 3000 | 3000 | ||
| Fork size (L×W×T) | mm | 1070×150×50 | 1070×150×50 | 1070×150×50 | 1070×150×50 | ||
| Fork carriage tilt(F/R) | ° | 6°/9° | 6°/9° | 6°/9° | 6°/9° | ||
| Overall Length(to fork face) | mm | 3030 | 3030 | 3030 | 3030 | ||
| Overall Width | mm | 1600 | 1600 | 1600 | 1600 | ||
| Mast Lowered Height | mm | 2330 | 2330 | 2330 | 2330 | ||
| Mast Extended Height | mm | 4255 | 4255 | 4255 | 4255 | ||
| Overhead Guard Height | mm | 2255 | 2255 | 2255 | 2255 | ||
| Wheelbase | mm | 2000 | 2000 | 2000 | 2000 | ||
| Overall length(with forks) | mm | 4100 | 4100 | 4100 | 4100 | ||
| Gradeability(Laden) | % | 15 | 15 | 15 | 15 | ||
| Front Tire | 28×12.5-15-24PR | 28×12.5-15-24PR | 28×12.5-15-24PR | 28×12.5-15-24PR | |||
| Rear Tire | 7.0-12-14PR | 7.0-12-14PR | 7.0-12-14PR | 7.0-12-14PR | |||
| Battery(Voltage/Capacity) | V/Ah | 80/700 | 80/700 | 80/700 | 80/800 | ||
| Drive motor | Kw | 2×11 | 2×11 | 2×11 | 2×11 | ||
| Lifte motor | Kw | 26 | 26 | 26 | 26 | ||
