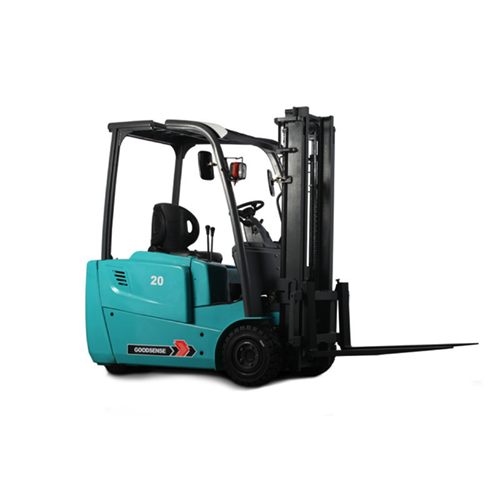

3-wheel Electric Forklift de 1.6 a 2 ton
Especificaciones
| Type of model | FB16S | FB18S | FB20S | |
| Power source | Electric | Electric | Electric | |
| Rated load capacity | kg | 1600 | 1800 | 2000 |
| Load centre | mm | 500 | 500 | 500 |
| Lift height | mm | 3000 | 3000 | 3000 |
| Fork size(LxWxT) | mm | 920x120x35 | 920x120x35 | 1070x120x40 |
| Fork carriage tilt(F/R) | Deg | 5°/7° | 5°/7° | 5°/7° |
| Overall length (Length to fork face) |
mm | 2090 | 2090 | 2090 |
| Overall width | mm | 1100 | 1100 | 1100 |
| Mast Lowered height | mm | 2030 | 2030 | 2030 |
| Mast extended height | mm | 4010 | 4010 | 4010 |
| Overhead Guard Height | mm | 2055 | 2055 | 2055 |
| Gradeability(Laden) | % | 15 | 15 | 15 |
| Front tire | mm | 18×7-8 | 18×7-8 | 18×7-8 |
| Rear tire | mm | 16×6-8 | 16×6-8 | 16×6-8 |
| Wheelbase | mm | 1460 | 1460 | 1460 |
| Drive motor | kw | 4.5×2 | 4.5×2 | 4.5×2 |
| Lift Motor | kw | 8.6 | 8.6 | 8.6 |
| Battery | V/Ah | 48/490 | 48/490 | 48/560 |
| Controller | CURTIS | CURTIS | CURTIS | |
| Type | AC | AC | AC |
